Kołnierz zgodny z normą DIN 12214.

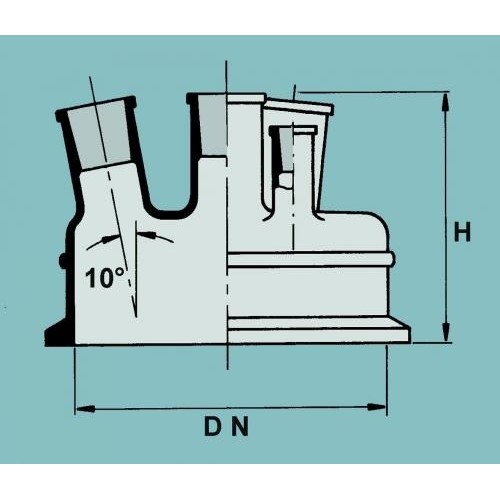

Wys. mm | DN kołnierza mm | Szyjka środkowa NS | Szlify boczne NS | Szlif szyjek ukośnych NS |
125 | 100 | 29/32 | - | 2 x 29/32 |
125 | 100 | 29/32 | 2 x 29/32 | - |
125 | 100 | 29/32 | 1 x 14/23 | 2 x 29/32 |
125 | 100 | 29/32 | 2 x 29/32 | 2 x 29/32 |
150 | 100 | 45/40 | - | 2 x 29/32 |
150 | 100 | 45/40 | 1 x 14/23 | 2 x 29/32 |
150 | 100 | 45/40 | 2 x 29/32 | 2 x 29/32 |
125 | 120 | 29/32 | - | 2 x 29/32 |
125 | 120 | 29/32 | 2 x 29/32 | - |
125 | 120 | 29/32 | 1 x 14/23 | 2 x 29/32 |
125 | 120 | 29/32 | 2 x 29/32 | 2 x 29/32 |
150 | 120 | 45/40 | - | 2 x 29/32 |
150 | 120 | 45/40 | 2 x 29/32 | - |
150 | 120 | 45/40 | 1 x 14/23 | 2 x 29/32 |
150 | 120 | 45/40 | 2 x 29/32 | 2 x 29/32 |
125 | 150 | 29/32 | - | 2 x 29/32 |
125 | 150 | 29/32 | 2 x 29/32 | - |
125 | 150 | 29/32 | 1 x 14/23 | 2 x 29/32 |
125 | 150 | 29/32 | 2 x 29/32 | 2 x 29/32 |
150 | 150 | 45/40 | - | 2 x 29/32 |
150 | 150 | 45/40 | 2 x 29/32 | - |
150 | 150 | 45/40 | 1 x 14/23 | 2 x 29/32 |
150 | 150 | 45/40 | 2 x 29/32 | 2 x 29/32 |
|
