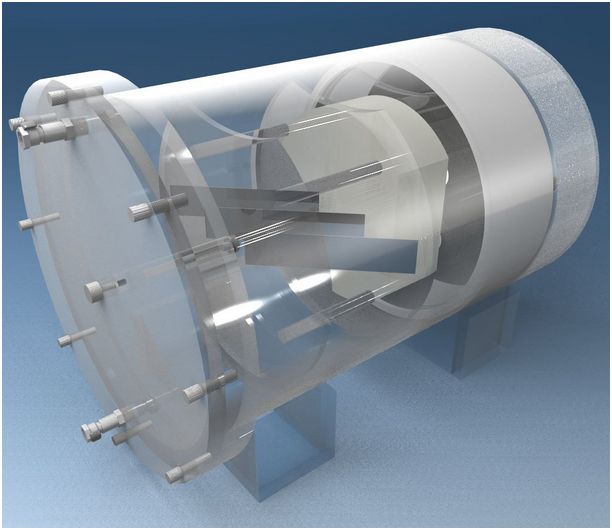

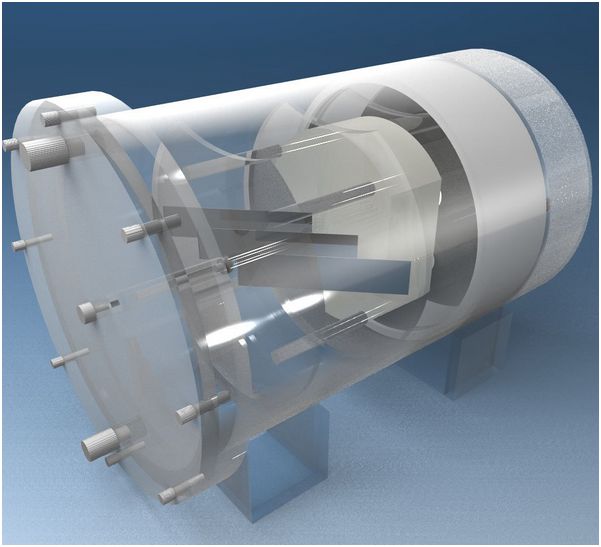

The Pro-CT AAPM phantom may be used for carrying out tests of computed tomography systems according to Report no. 1 of the AAPM (American Association of Physicists in Medicine).

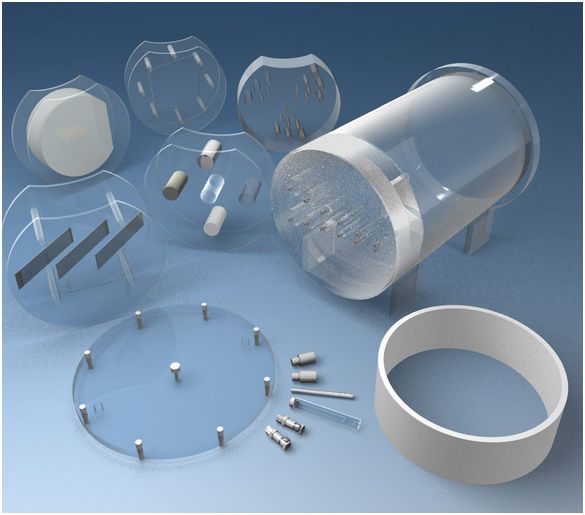

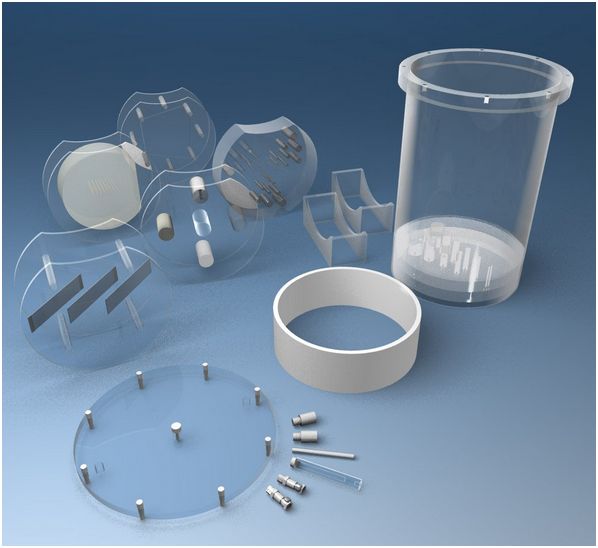

Technical data (can be modified to customer specifications):
- PMMA water tank:
- inside cylinder diameter: 214mm
- outside cylinder diameter: 220mm
- lid has quick disconnect valves for ease of filling and draining
- aluminum alignment pin (6.3mm Ø x 76mm) or a polystyrene TLD insert (for dose measurements) can be attached to the lid
- low contrast section:
- placed on the one end of water tank
- 12 fillable cavities 40mm deep
- two of each cavity with diameters: 25.4 , 19.0, 12.7, 9.5, 6.4 and 3.2 mm
- spaced twice their diameter apart from a centerline
- cavities can be easily filled from the outside with dextrose or sodium chloride solutions of various concentrations
- bone insert:
- PTFE annulus
- wall thickness 6.4mm, 70mm long
- fits over all inserts to harden the beam

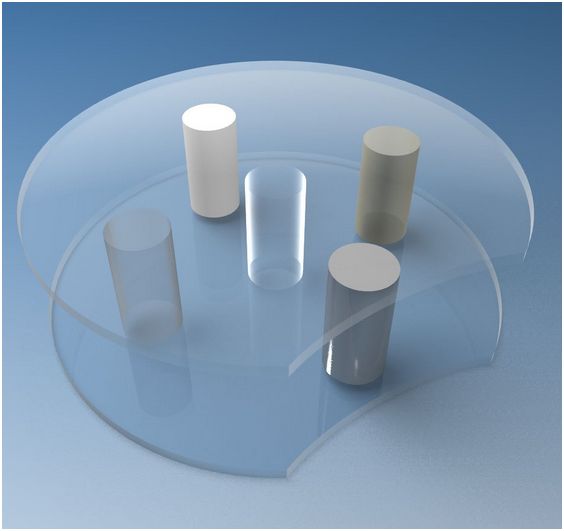

- CT number linearity insert:
- five 25mm rods
- material: polyethylene, PMMA (acrylic), polycarbonate, polystyrene and nylon
- density values (g/cm3): 0.95, 1.19, 1.20, 1.05 and 1.1 respectively

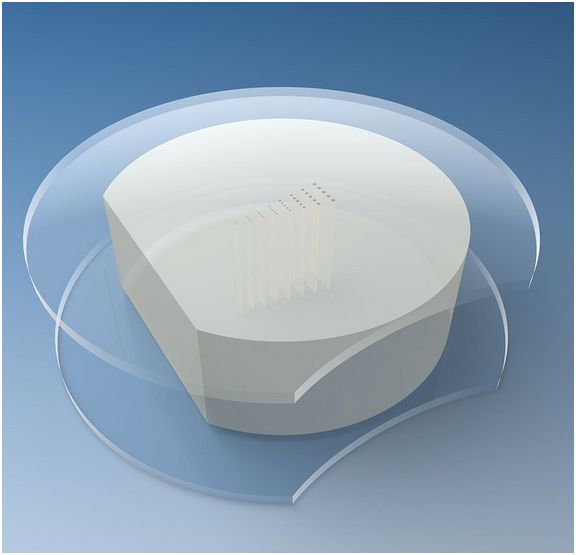

- resolution insert:
- eight sets / rows of air thru holes (five holes per set)
- diameters of holes: 1.75, 1.5, 1.25, 1.00, 0.75, 0.61, 0.50 and 0.40 mm.
- distance between each hole is equal to the hole diameter
- distance between rows 5mm
- 0.2mm stainless steel wire positioned longitudinally for calculation of line-spread function

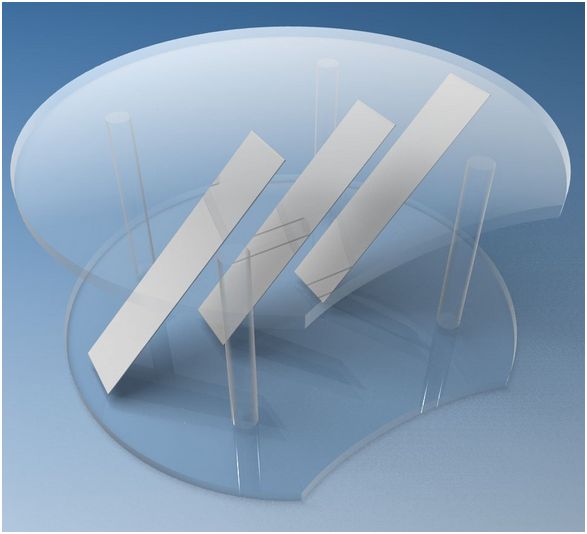

- slice thickness insert:
- three aluminum strips, 0.5mm thick and 25mm wide angled at 450 positioned at the centre and aligned vertically

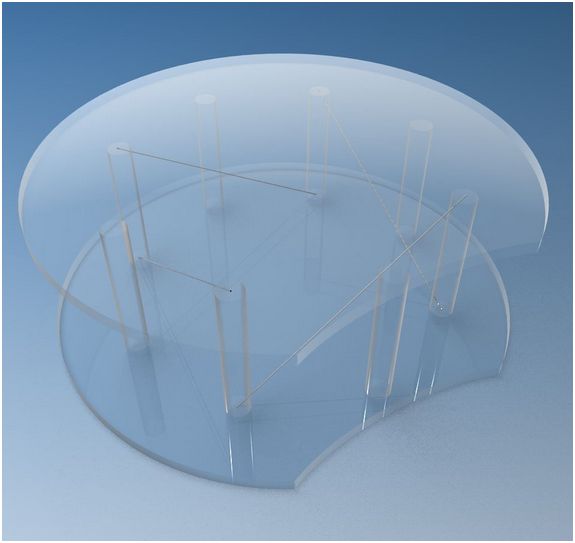

- geometry insert (optional):
- contains two pairs of aluminium wire ramps whose slope angle tangent is equal to 0.5.
- middles of ramps intersect on the same plane allowing for very precise evaluation of the slice location
- contains two sets of four PMMA rods (ø 10mm) placed in vertexes of two squares (sides 100mm long)

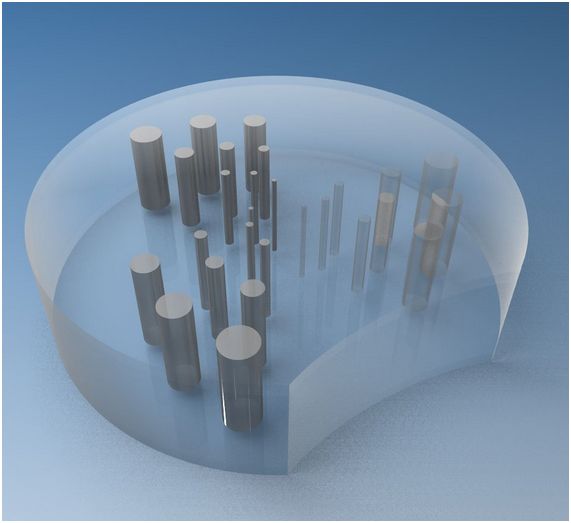

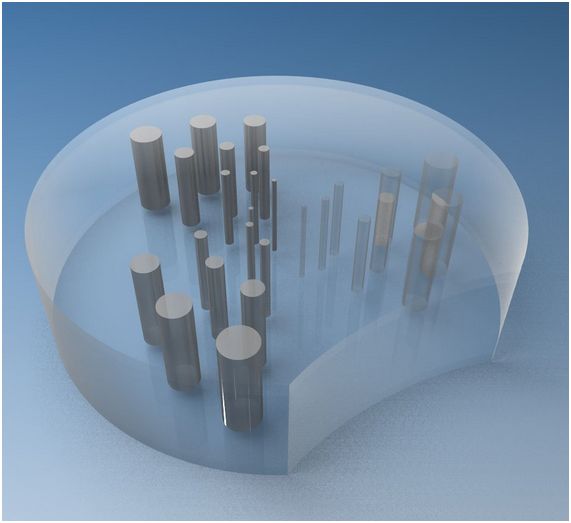

- triple low contrast insert (optional):
- contains three groups of low-contrast objects. In each group, there are rods of the same density, 20mm in height and with a diameter ranging from 2 to 15mm. Density difference between groups and surrounding material is exactly 1, 2 and 3%
- made of PMMA
- filling tubes
- heavy duty carrying case (optional)
Product features:
- Complies with:
- Report no. 1 of the AAPM (American Association of Physicists in Medicine)
- IEC 61223-3-5
- IEC 61223-2-6
- CE certified
- manual provides detailed guidelines for carrying out each test, results assessment and registration.
