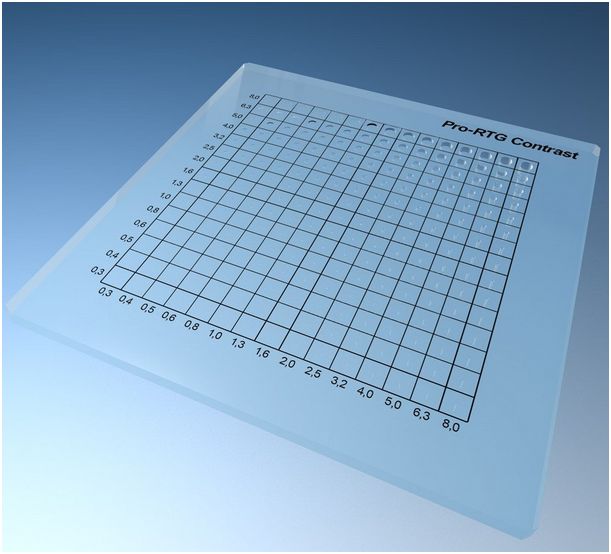

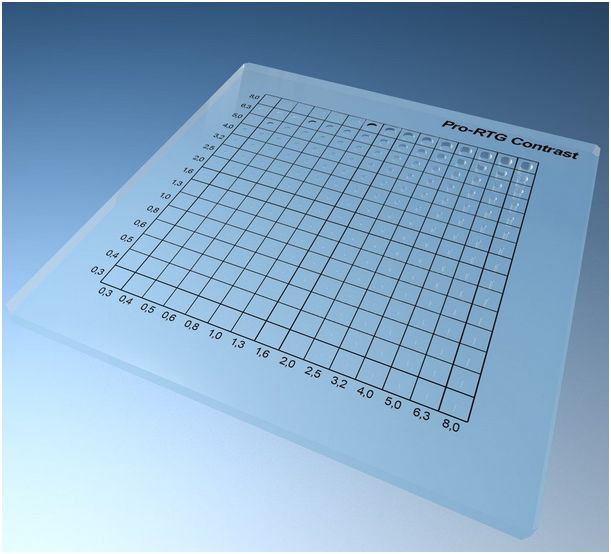

A Contrast-Detail (CD) phantom makes it possible to quantify both, detail and contrast, as observed by the radiologist. It can be used within the entire range of radiography diagnostic imaging systems, such as fluoroscopy and angiography. It has 225 holes that generate subtle changes in contrast.
Technical data:
- dimensions: 265 x 265 x 10mm
- made of PMMA
- 15 columns and 15 rows of holes
- diameters of holes range from 0.3 to 8.0mm
- depths of holes range from 0.3 to 8.0mm
- tolerance of holes is at least 0.01mm
- all marking on the phantom are opaque for x-rays

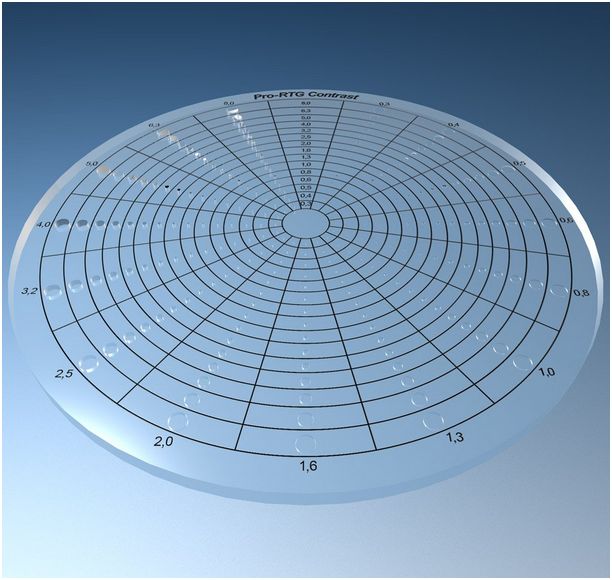

- available in rectangular and circular shape
Product features:
- complies with:
- IEC 61223-3-1
- CE certified
- manual provides detailed guidelines for carrying out each test, results assessment and registration
