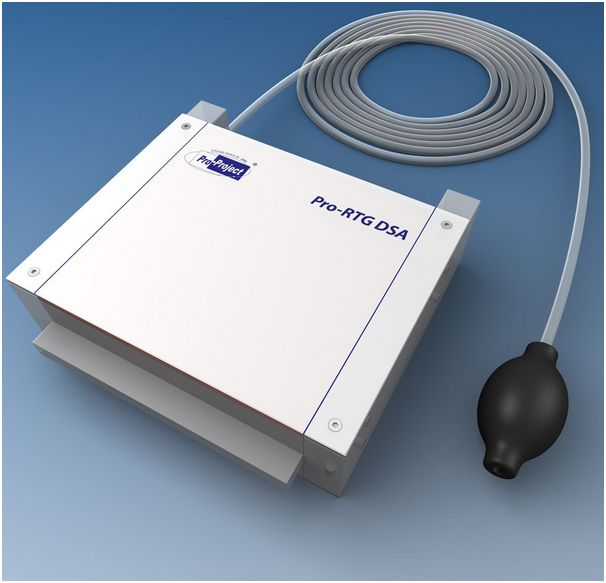

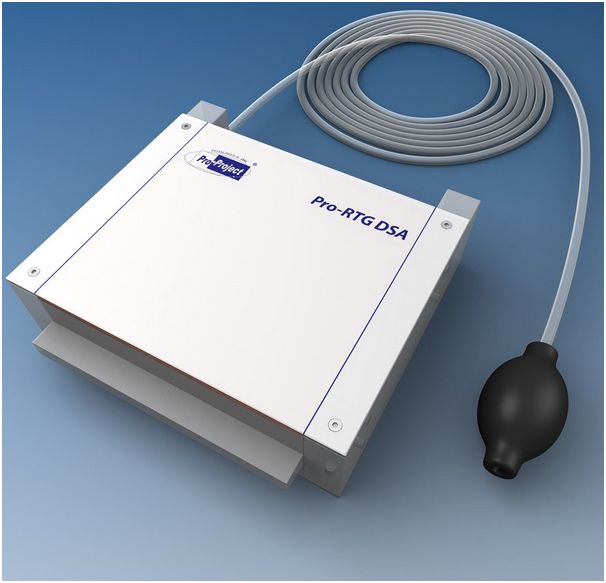

A special phantom for Quality Assurance of Digital Subtraction Angiography Equipment (DSA) according to IEC 61223-3-3 and DIN 6868/Parts 8, (2007) and 54. Phantom contains a movable insert with aluminum strips to simulate blood vessels. This insert can be moved via pneumatic system from safe distance during exposition.
It can be used to measure:
- artifacts
- dynamic range
- logarithmic errors
- contrast media sensitivity
Technical data:
- overall dimensions: 190 x 170 x 59mm
- total PMMA thickness in the test area: 57mm
- dynamic 7 steps wedge of copper from 0.2 mm to 1.4 mm – thicknesses arranged perpendicular to the longitudinal direction of the insert
- additional step from 1.4mm to 0.2mm for compensation test
- movable PMMA insert with 4 aluminum strips (0.05, 0.1, 0.2, 0.4mm), purity 99.5%, simulating different vascular densities
- pneumatic hose 6m
Product features:
- complies with:
- IEC 61223-3-3
- DIN 6868/Parts 8, (2007) and 54
- CE certified
- manual provides detailed guidelines for carrying out each test, results assessment and registration
