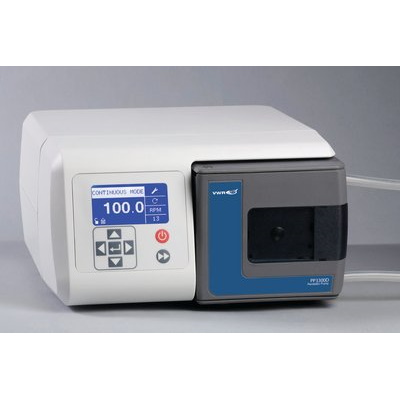

VWR PP 3300D / 3400D
PP 3300D and PP 3400D peristaltic pumps are specifically designed for critical metering and dispensing applications: The user can pump, dispense and fill – all with one unit.
Główne cechy:
- Rapid loading pump head allows tubing to be changed in less than 30 seconds
- Robust motor and drive system provides low maintenance, long-term operation
- Contamination-free pumping – the liquid only has contact with the tubing
- Programmable in seven languages – allows easy set-up in almost any global location
- Reversible pump direction allows tubing to be purged prior to use
- Use various different tubing sizes providing a broad flow range
- Able to pump against pressure up to 60 PSIG providing longer filtration cycles
- Safety interlock powers down unit when changing tubing
PP 3300D and PP 3400D peristaltic pumps are simple to set-up as dosing pumps, or dispensing systems by volume, time or copy mode with a timed interval. The pump is also reversible, allowing transfer lines or emptying containers to be purged. The innovative PP 3300D and PP 3400D systems provide a number of important advantages for users, including single-channel variable flow from 0,5 to 3000 ml/min at a variable speed range of 4 − 400 rpm. The unit’s powerful motor provides 0,25% speed control accuracy and repeatability as well as remote control operation.
Control capabilities include a programmable delay between cycles for convenient, automated dispensing. Otimises system accuracy by calibrating the pump system in process – the calibration is stored in memory – one calibration value per tubing size. Broad range of remote control options – ideal for automated process applications. Space efficient, low profile, stackable design. Accurate, reliable control of flow and dosing – digital display of rpm for accurate control.
Certyfikaty: EN 61010-1 (EU Low Voltage Directive) and EN 61326 (EU EMC Directive)
Specyfikacja:
| Typ | PP 3300D | PP 3400D |
| Numer katalogowy VWR | 181-4007 | 181-4008 |
| Sterowanie | 0−20 mA; 4−20 mA or 0−10 V; scalable; Start/Stop; DIR (CW/CCW); PRIME via contact closure; Remote/Local indication |
0−20 mA; 4−20 mA or 0−10 V; scalable; Start/Stop; DIR (CW/CCW); PRIME via contact closure; Remote/Local indication
|
| Reversible | tak | tak |
| Head material | GF nylon Delrin®, stainless steel, cold rolled steel, Buna N, Polycarbonate |
GF nylon Delrin®, stainless steel, cold rolled steel, Buna N, Polycarbonate
|
| Housing material | ABS | ABS |
| Przepływ (ml/min) | 0,5−3000 | 14−4000 |
| Operating speed | 4−400 UpM | 4−400 UpM |
| Dopuszczalna temp. otoczenia (°C) | 0...+40 | 0...+40 |
| Klasa szczelności IP | IP 31 | IP 31 |
| Zasilanie | 115−230 V AC; 60/50 Hz | 115−230 V AC; 60/50 Hz |
| Poziom hałasu (dB(A)) | <70 | <70 |
| Wymiary - szer. x gł. x wys. (mm) | 317×279×152 | 317×279×152 |
| Waga (kg) | 5,67 | 5,67 |
Prędkość przepływu [mL/min]:
3000
4000
Szerokość [mm]:
317;
Długość [mm]:
279;
Wysokość [mm]:
152;
Ciężar [kg]:
5,67;
